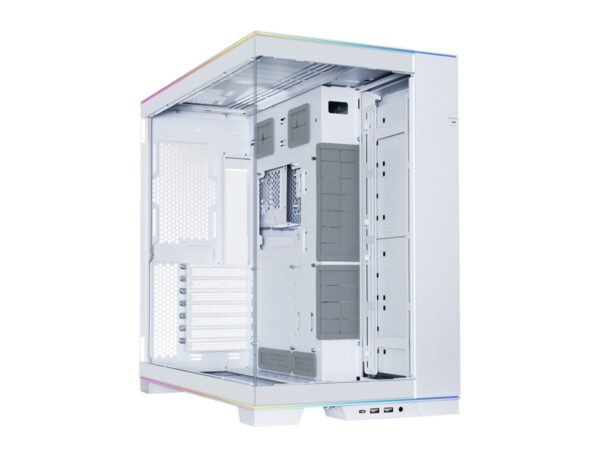

Introducing the all-new O11D EVO RGB, with dual ARGB lighting strips running across the top and bottom of the frame, creating a stunning display. And the expanded internal space provides greater component compatibility, offering a great PC building experience.
- REVERSIBLE CHASSIS
- DUAL ARGB STRIPS
- REMOVABLE FRONT PILLAR
- SUPPORTS TOP 420MM RADIATOR
- SUPPORTS 10 FANS
- ADJUSTABLE MOTHERBOARD INSTALLATION
- 8 DRIVES CAPACITY
- CABLE MANAGEMENT FRIENDLY
TWO COLORS/TWO FUNCTIONS
Derived from the O11D EVO, the O11D EVO RGB can be displayed in two modes with a few simple steps, allowing left or right view of your Hardware. It is also available in two color options: Black and White.
ARGB STRIPS ON TOP AND BOTTOM
The O11D EVO RGB features a 1.5mm thick L-shaped ARGB strip on both the top and bottom of the frame, which can switch between 14 different lighting effects, adjust brightness and color, and sync with motherboard.
COMPLETELY UNOBSTRUCTED VIEW
The front pillar of the O11D EVO RGB can now be easily removed, providing an unobstructed view for viewing hardware without affecting the housing structure.
BIGGER SIZE, GREATER COMPATIBILITY
Compared to the O11D EVO, the O11D EVO RGB is slightly larger, which provides higher component compatibility: it supports a 420mm radiator on top (requires a separate bracket), a 360mm radiator on the side/bottom, and 3x140mm fans on all three sides.
MODULAR DESIGN – FLEXIBLE CONFIGURATION
Modularity has always been one of the design languages of the O11D EVO series, and the O11D EVO RGB is no exception: At the bottom of the chassis, the multi-port I/O unit can be moved to 3 different positions without the use of tools.
Struggle-Free Fan Brackets
Equipped with a quick release design, the fan mounts on all three sides can be easily removed or installed.
The side bracket can be flipped vertically or horizontally, offering 4 different installation styles.
ADJUSTABLE MOTHERBOARD INSTALLATION
The O11D EVO RGB features two sets of pilot holes at different heights, allowing users to adjust the motherboard's installation position to accommodate different PC Builds.
CUSTOM CABLE MANAGEMENT
The O11D EVO RGB features an improved cable management design, with large VELCRO straps near the power supply chamber, double-layer cable clips that can hold both bulky and thinner cables, and 15mm of extended space from the back of the power supply chamber for more cable management area.
UPGRADE YOUR GPU
The O11D EVO RGB comes with the new GB-003 bracket with easy height adjustment to support heavy GPUs.
FRIENDLY STORAGE CAPACITY
The O11D EVO RGB offers multiple, easily accessible storage mounting slots that support up to 8 × SSD or 4 × HDD + 2 × SSD.
OPTIONAL ACCESSORIES
2 low profile silicone covers are included to provide a clean look for cable management.
DIMENSIONS | (D)478mm × (W)290mm × (H)471mm | |
---|---|---|
MATERIAL | Steel / 4.0mm tempered glass / Carbon Fiber | |
MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/M-ATX/MINI-ITX | |
EXPANSION SLOT | 7 | |
STORAGE | Side Fan Bracket: 2 × 3.5″ HDD or 4 × 2.5″ SSD Behind MB Tray: 2 × 2.5″ SSD Hard Drive Cage: 2 × 3.5″ HDD or 2.5″ SSD |
|
RADIATOR SUPPORT | Top: 240mm × 1 or 360mm × 1 or 420mm × 1 Side: 240mm × 1 or 280mm × 1 or 360mm × 1 Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1 |
|
FAN SUPPORT | Top: 120mm × 3 or 140mm × 3 Side: 120mm × 3 or 140mm × 3 Bottom: 120mm × 3 or 140mm × 3 Rear: 120mm × 1 |
|
GPU LENGTH CLEARANCE | 455.7mm(Max) | |
CPU COOLER HEIGHT CLEARANCE | 167mm(MAX) | |
I/O PORTS | USB 3.0 × 2 USB 3.1 TYPE-C × 1 Audio × 1 Color Button × 1 Mode Button × Brightness Button × 1 Reset Button × 1 Power Button × 1 |
|
DUST FILTER | 1 × Bottom | |
WARRANTY | 2 years |
