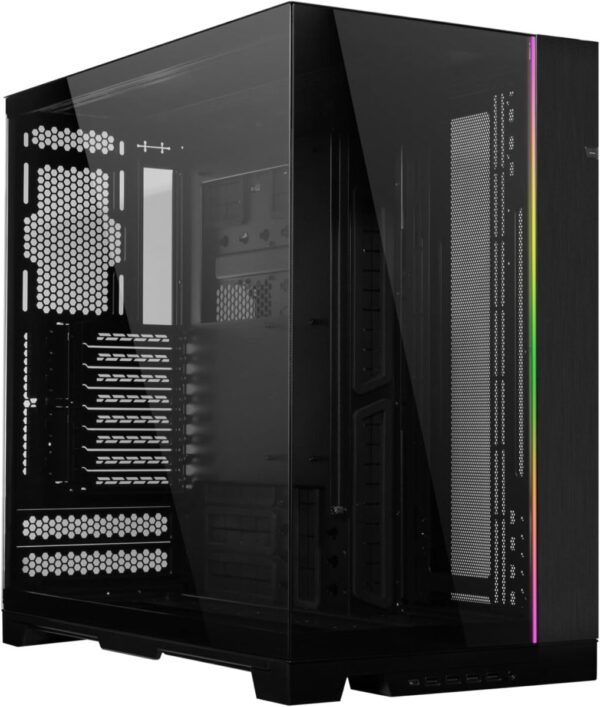

Introducing the brand new O11D EVO XL, an enlarged case that accommodates numerous components while enhancing modularity to meet the needs of most PC Enthusiasts.
TWO COLORS / TWO SIDES
Derived from the O11D EVO, the O11D EVO XL can be displayed on two sides in a few simple steps, allowing left or right viewing.
RGB STRIP
The ARGB strip on the front dazzles with built-in lighting effects and the ability to sync with the motherboard.
THIN MESH, STRONG TOUCH
With style and performance in mind, both the top and side panels of the O11D EVO XL are made of fine mesh aluminum, offering a high-end look while also providing superior cooling compared to the O11D XL.
The fully open bottom panel, along with three dust filters, ensures unobstructed airflow while effectively keeping dust away from the frame.
FULL UNBLOCKED VIEW
The front pillar of the O11D EVO XL can now be easily removed, providing an unobstructed view to view the Hardware without being affected.
LARGE SIZE, LARGE COMPATIBILITY
In the O11D EVO XL there is plenty of space to accommodate modern, powerful and large components. There is also adequate cooling with support for 3 × 420 mm radiators.
All 3 sides can fit up to a maximum radiator of 420 mm.
FLEXIBLE CONFIGURATION
The adjustable motherboard tray can be moved up and down with three height levels to fit different combinations of fans and radiators.
The Motherboard Tray supports a maximum E-ATX Motherboard (width 280mm).
TOOL FREE INSTALLATION
Secure the graphics card easily, without tools.
It also comes with the new anti-sag bracket, (GB-003) designed for easy height adjustment to effectively support heavy GPUs.
STRUGGLE-FREE FAN BRACKETS
Equipped with a quick release design, the fan brackets can be removed or installed easily.
MOVED I/O PORT
To satisfy every need, it includes 1 × USB Type C port and 4 × USB Type A ports.
At the bottom of the box, the I/O module can be moved to 3 different positions without the use of tools.
STORAGE CAPACITY
It offers multiple, easily accessible storage device mounting positions, up to 7 × SSD or 4 × HDD + 3 × SSD.
CONSIDERING WATER COOLING
Offers a hidden mounting point for the D5 or DDC pump, accessible by removing the lower drive cage in both reverse and normal mode.
dimensions | (D) 522mm x (W) 304mm x (H) 531.9mm | |
---|---|---|
CONSTRUCTION | Steel 4.0mm Tempered Glass Aluminum |
|
MOTHERBOARD SUPPORT | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX | |
EXPANSION SLOT | 8 | |
STORAGE | Behind MB Tray: 3 x 2.5″ SSD Hard Drive Cage: 4 x 3.5″ HDD / 2.5″ SSD |
|
GPU LENGTH CLEARANCE | 460mm (Max.) | |
CPU COOLER HEIGHT CLEARANCE | 167mm (Max.) | |
PSU | ATX (Under 220mm) | |
FAN SUPPORT | Top: 3 x 120mm / 3 x 140mm Sides: 3 x 120mm / 3 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear: Up to 2x 120mm |
|
RADIATOR SUPPORT | Top: 360 / 420 / 240 / 280mm Sides: 360 / 420 / 240 / 280mm Bottom: 360 / 420 / 240 / 280mm |
|
I/O PORTS | 1 x Power Button 1 x Reset Button 4 x USB 3.0 1 x USB Type-C 1 x Audio 1 x LED Color Button 1 x LED Mode Button |
|
DUST FILTERS | 1 x Bottom 1 x Top 2 x Sides |
